cascade gateway

Cascade IoT Gateway

Edge Connectivity, Computing & Security

The Cascade IoT Gateway is included as part of our Cascade Edge-as-a-Service solution and offers a powerful and cost-effective edge network for large-scale, low-power wireless deployments. It provides commercial IoT project and product teams with flexible edge computing power, a robust containerized application environment, and a wide variety of wireless device connectivity options, including Bluetooth 5, LTE, & Wi-Fi.

Combined with our Edge Connect configurable data pipeline, and our Edge Direct tools for gateway monitoring and management, the Cascade IoT Gateway is the foundation of an extensible and secure edge data network infrastructure.

⤓ Download Product Brief

Flexible . Secure . Cost-Effective

Our Cascade gateways are the foundation of a secure and extensible edge data network.

Flexible Connectivity

Cascade gateways balance flexible connectivity with edge computing power in a secure and cost-effective package. Packed with an ARM A7 Processor and Ubuntu Core OS for edge computing, Cascade gateways provide a wide range of reliable connectivity options:

  • Bluetooth 5 (nRF5240), with a PA & LNA for extended range
  • Wi-Fi 2.4 & 5 GHz a/g/b
  • Support for Zigbee, Thread & Wirepas Mesh
  • Ethernet with PoE for easier installation
  • USB for wired connectivity and expansion
  • Worldwide Cellular LTE Cat-1 (optional)

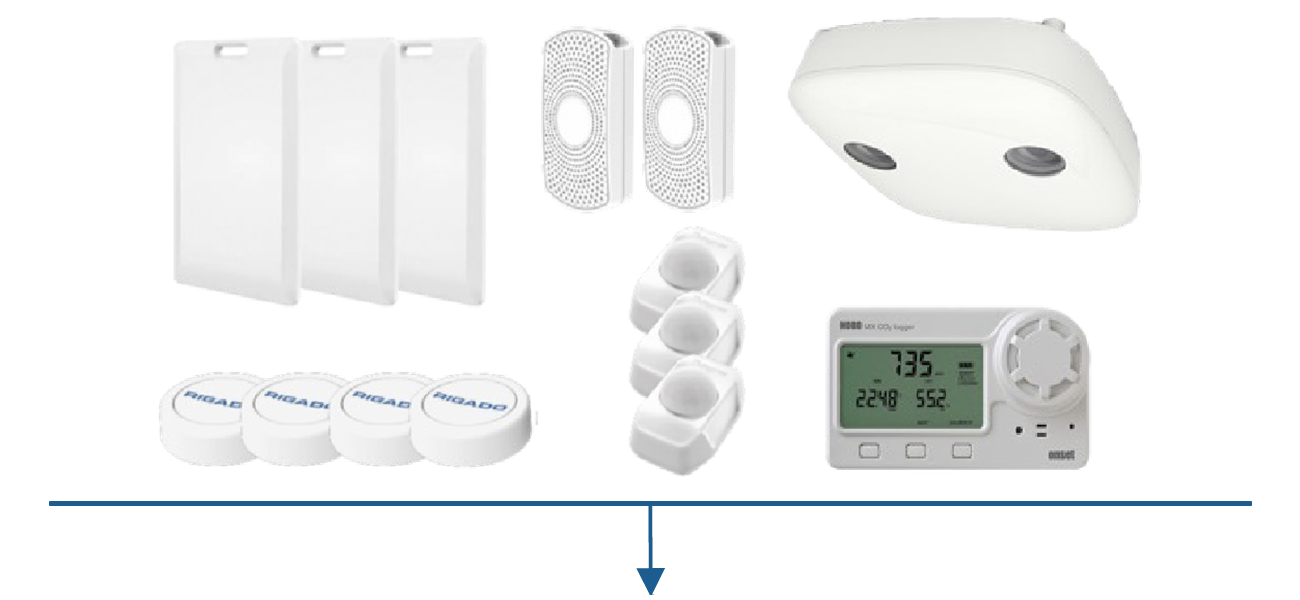

Plus, our included APIs simplify connectivity to wireless sensors devices. See Integrated Sensors & Devices ⟶

Edge Computing

Cascade gateways feature an ARM A7 processor with 512MB of RAM and 8GB of built-in storage – allowing them to run multiple edge applications and store data for batch delivery to the cloud. Ubuntu Core OS provides secure, containerized edge computing.

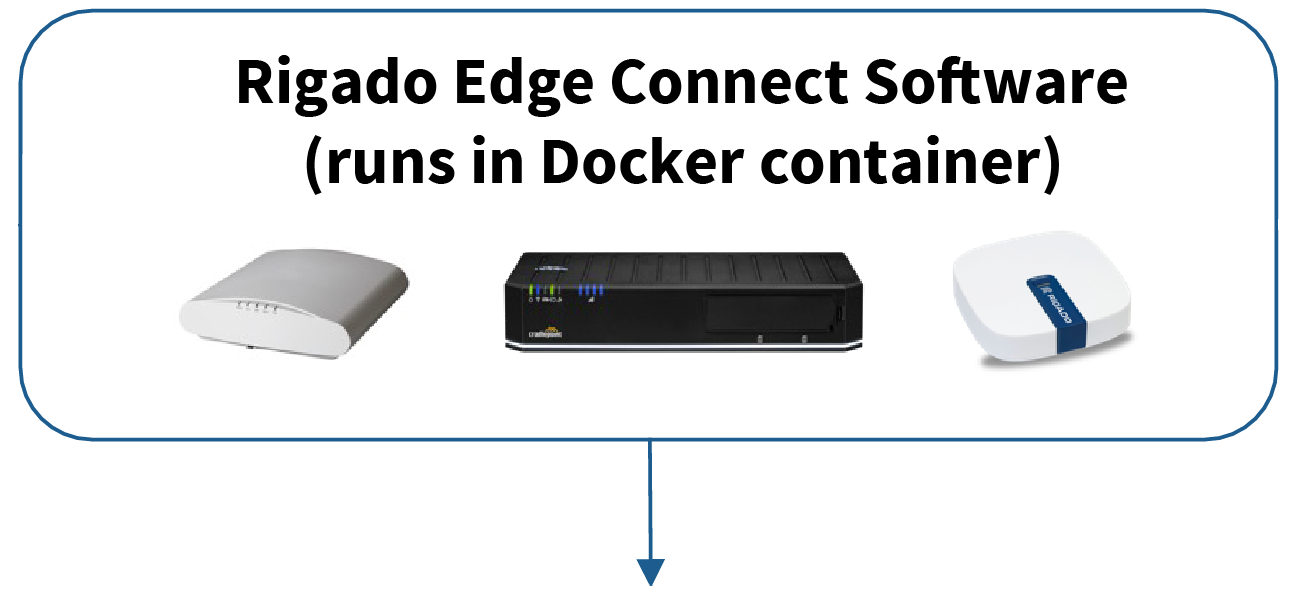

Our gateways also include Edge Connect, a configurable data pipeline for aggregating, filtering and delivering data from Bluetooth 5 and other wireless devices .

This saves IoT teams weeks or months of development time that would be required to create their own edge data applications.

Cascade gateways are AWS IoT Greengrass and Azure IoT certified.

Direct Cloud Integration

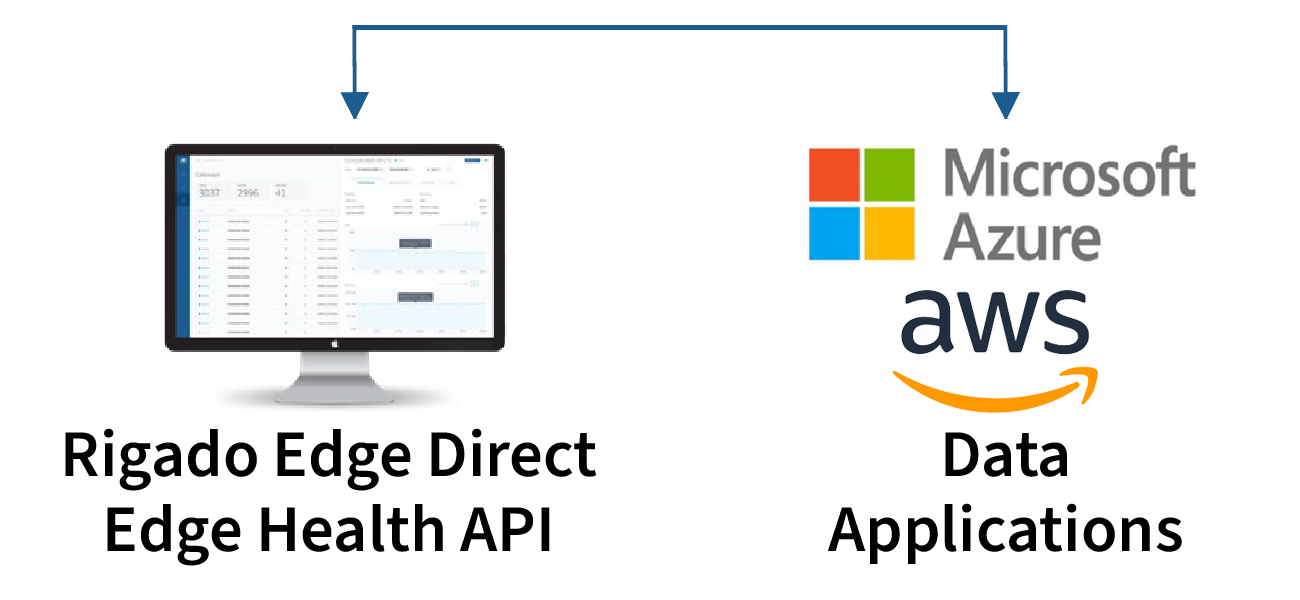

Unlike many IoT solutions, Rigado gateways send data directly to customers’ cloud endpoints, services and applications – typically via MQTT or HTTPS.

This means that our customers’ data can flow directly to their cloud (or on-premise) systems and applications without incurring the cost or complexity of funneling through a separate cloud service first.

Customers and partners tell us this is a key point of differentiation for Rigado – as many of IoT edge solutions require data to flow through cloud backends that add cost, complexity and security risk.

Rigado’s cloud-based Edge Direct tools collect performance monitoring metrics about the Gateways via a separate MQTT connection, which does not include customer data.

Start Secure, Stay Secure

Cascade gateways provide end-to-end security for IoT edge infrastructure, including ongoing security updates.

Gateways are secured from the start with an encrypted key and device ID at the point of manufacture.

Initial programming, configuration, provisioning, and all future updates are signed and verified for run-time protection.

Edge applications run in secure containers, on an encrypted OS and filesystem with Secure Boot. All data and communication is encrypted both at rest and in transit on the gateways.

The Cascade Edge-as-a-Service subscription includes evergreen security updates to keep devices safe in the field, even as new risks and vulnerabilities emerge.

Gateway Specifications

Computing & Storage
  • 800MHz ARM with 512MB RAM
  • 8GB of storage
  • Long-range Bluetooth 5 + PA/LNA
  • 802.15.4
  • Wirepas Mesh
  • IPv6
  • Wi-Fi 802.11a/b/g/n/ac
  • 10/100 Ethernet with PoE 802.3af
  • Secure element hardware security module
  • Encrypted file system & Secure Boot
Cellular Options
  • Worldwide Cat 1 LTE with 2G/3G Fallback
Accessory Options
  • Wall/Ceiling Bracket
  • International Power Adapter
Enclosure Options
  • Custom pad printed logo & color
  • Outdoor / Weatherproof enclosures
  • FCC, IC, CE, RCM
